ACTUATOR H-H SkyRevolt 120CM (Green stamp 1 leu)

Availability:

4 in stock

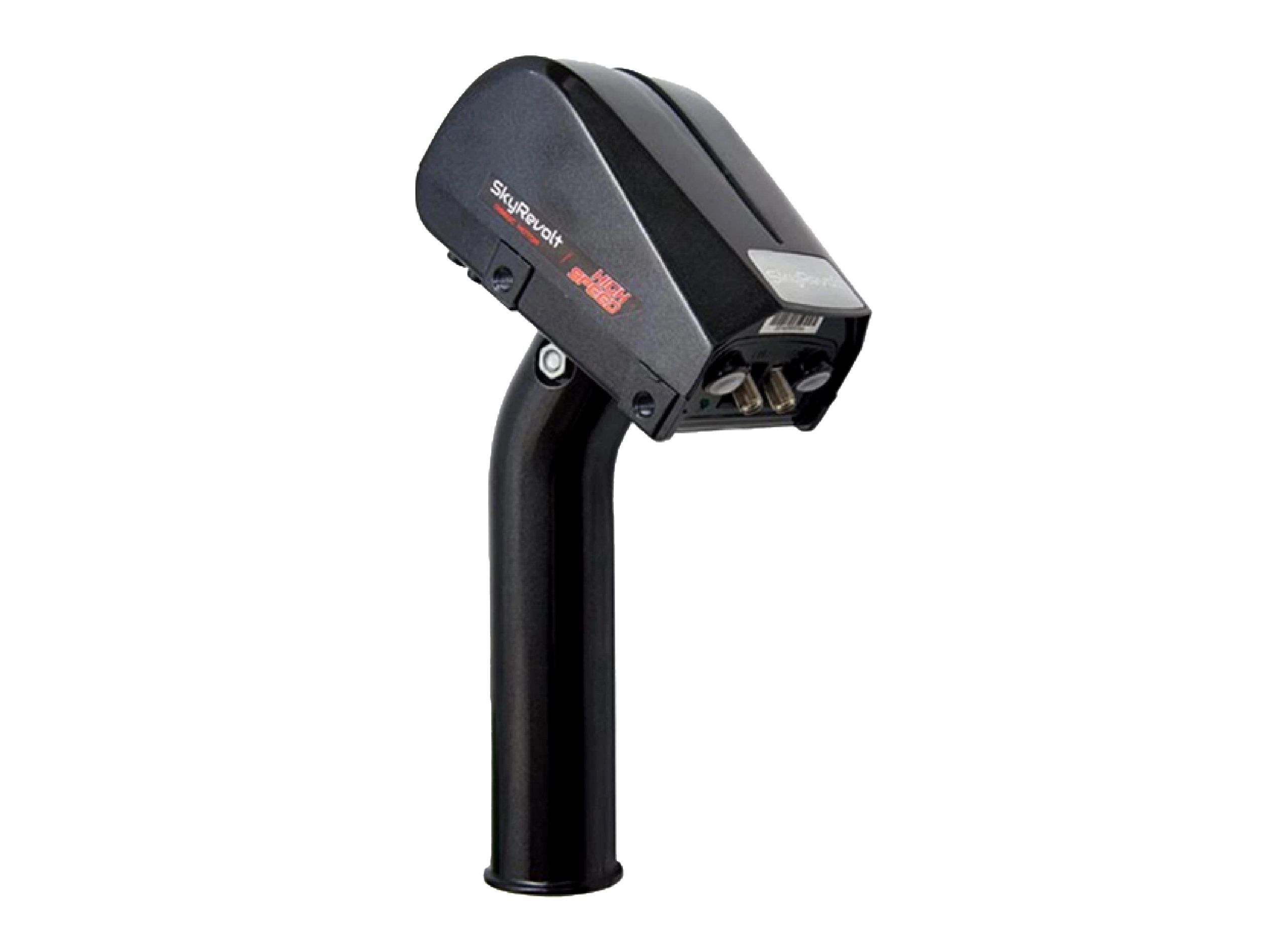

  • SkyRevolt SVM-P 1.3 positioner with DiSEqC motor for satellite dish
  • Suitable for satellite dishes up to 1.20 m
  • Compatible with all receivers that support DiSEqC 1.2
  • SkyRevolt Sat Motor DiSEqC 1.2 allows you to easily switch your satellite dish to
    different satellites up to a dish size of 120 cm.
  • Control is done through a receiver with DiSEqC 1.2 or 1.3 without additional power and has
    100 satellite positions.
  • The robust motor construction ensures longer durability and stability.
    The power supply is provided by the receiver, which transmits the current through the coaxial cable and
    thus supplying energy to the engine.

358.00 lei

4 in stock

  • Technical data:
  • Protocol: DiSEqC 1.2 & Go To "X"
  • Compatible receivers: Receiver with DiSEqC function 1.2
  • Antenna size: Max 120cm
  • Speed: 2.5 ° / sec (at 13V); 3.2 ° / sec (18V).
  • Azimuth angle: 80 ° East ~ 80 ° West (160 °)
  • Elevation angle: 25~75°
  • Input voltage: 13 /18 V
  • Tensiune de ieșire: 13 /18 V
  • Power consumption: 100mA (standby) / 200mA (normal) / 350mA (max.)
  • Satellite positions: 100 positions
  • Funcție de calibrare: Da, "Go to X" (go to 0°)

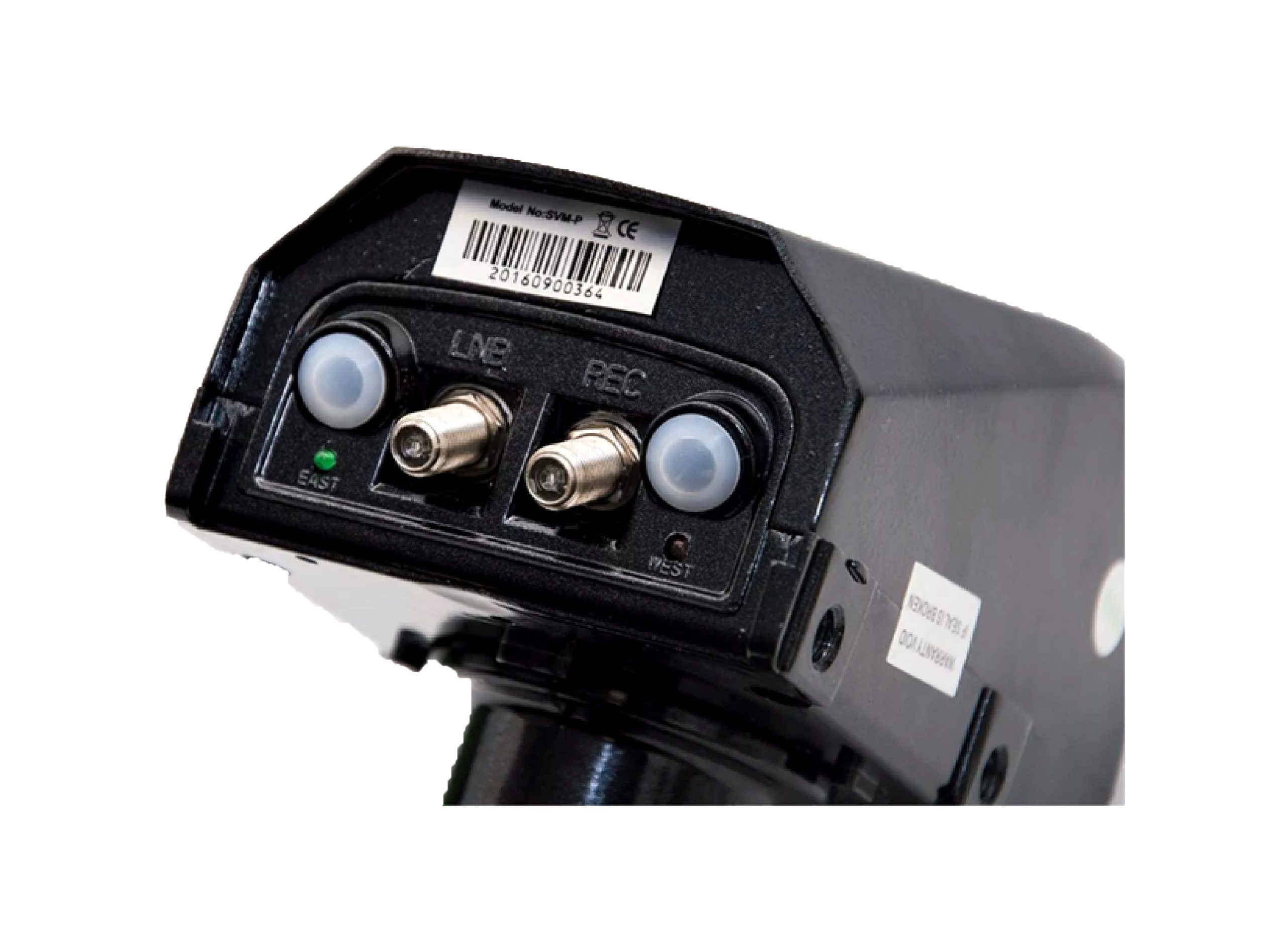

  • East / West manual buttons: Yes, at the bottom
  • Limitation protection: 1. Fixed by microswitch, 2. Programmable software limit, 3. Current limit
  • Positioning sensor: High resolution Hall effect sensor
  • Connection: F connector
  • Weight (engine): 3.1 kg (net) / 3.5 kg
  • Dimensions (motor): 345 x 168 x 110mm
SKU: A8047 Categories: , ,
Weight 3.3 kg
Dimensions 34 × 17 × 11 cm
Producer

Others
Equipment type

Antenna motor max 1.20m
