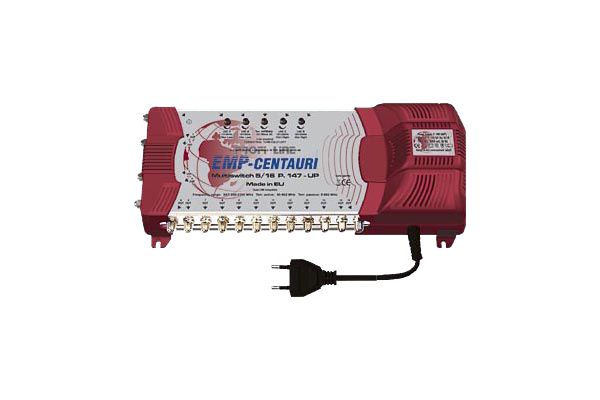

Comutator EMP-Centauri 5 la 16

Disponibilitate:

Disponibil pe comanda

P.147-UP (MS5/16PIU-5)
Sistem de distributie independent cu 5 intrari / 16 iesiri. Furnizeaza 22 KHz pentru benzile superioare, in vederea utilizarii si a LNc-urilor QUAD.
Specifications of P.147-UP (MS5/16PIU-5)
Frequency Range LNB-Inputs 950-2300 MHz
Terr. Input 5-862 MHz (passive) 40-862 MHz (active)
Outputs 5-2300 MHz (passive) 40-2300 MHz (active)
Control 10-14.5 / 15.5-20 V + 0/22 kHz
Insertion Loss / Gain 950-2300 MHz 0 dB avg.
40-862 MHz (active) 6 dB gin
5-862 MHz (passive) 22 dB loss
SAT Inputs Isolation 20 dB min.
Maximum Input Level Sat. 90 dBµV
Sat. 110 dBµV (passive) 85 dBµV (active)
Power Consumption From each receiver 45 mA (18 V)
From internal power supply 5 W (TERR passive) 9 W (TERR active)
Dimensions (w,d,h [cm]) 34.5 x 15.2 x 8.7
Temperature range -30 °C – +70 °C

Pretul include timbrul verde: 0.96 lei

P.147-UP (MS5/16PIU-5)
Sistem de distributie independent cu 5 intrari / 16 iesiri. Furnizeaza 22 KHz pentru benzile superioare, in vederea utilizarii si a LNc-urilor QUAD.
Specifications of P.147-UP (MS5/16PIU-5)
Frequency Range LNB-Inputs 950-2300 MHz
Terr. Input 5-862 MHz (passive) 40-862 MHz (active)
Outputs 5-2300 MHz (passive) 40-2300 MHz (active)
Control 10-14.5 / 15.5-20 V + 0/22 kHz
Insertion Loss / Gain 950-2300 MHz 0 dB avg.
40-862 MHz (active) 6 dB gin
5-862 MHz (passive) 22 dB loss
SAT Inputs Isolation 20 dB min.
Maximum Input Level Sat. 90 dBµV
Sat. 110 dBµV (passive) 85 dBµV (active)
Power Consumption From each receiver 45 mA (18 V)
From internal power supply 5 W (TERR passive) 9 W (TERR active)
Dimensions (w,d,h [cm]) 34.5 x 15.2 x 8.7
Temperature range -30 °C – +70 °C

Mai multe detalii aici.
