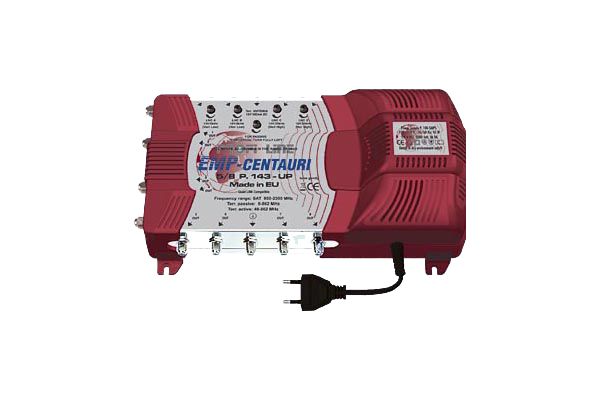

Comutator EMP-Centauri 5 la 8

Disponibilitate:

Disponibil pe comanda

  • P.143-UP (MS5/8PIU-4)
  • Sistem de distributie independent cu 5 intrari / 8 iesiri. Furnizeaza 22 KHz pentru benzile superioare, in vederea utilizarii si a LNc-urilor QUAD.
  • Specifications of P.143-UP (MS5/8PIU-4)
  • Frequency Range LNB-Inputs 950-2300 MHz
  • Terr. Input 5-862 MHz (passive) 40-862 MHz (active)
  • Outputs 5-2300 MHz (passive) 40-2300 MHz (active)
  • Control 10-14.5 / 15.5-20 V + 0/22 kHz
  • Insertion Loss 950-2300 MHz 4 dB avg.
  • 40-862 MHz (active) 3 dB
  • 5-862 MHz (passive) 20 dB
  • SAT Inputs Isolation 20 dB min.
  • Maximum Input Level* Sat. 100 dBµV
  • Terr.110 dBµV (passive) 93 dBµV (active)
  • Power Consumption From each receiver 40 mA (18 V)
  • From internal power supply 4 W (TERR passive) 6 W (TERR active)
  • Dimensions (w,d,h [cm]) 27.0 x 15.2 x 8.7
  • Temperature range -30 °C – +70 °C

322.00 lei

Pretul include timbrul verde: 0.96 lei

Disponibil pe comanda

  • P.143-UP (MS5/8PIU-4)
  • Sistem de distributie independent cu 5 intrari / 8 iesiri. Furnizeaza 22 KHz pentru benzile superioare, in vederea utilizarii si a LNc-urilor QUAD.
  • Specifications of P.143-UP (MS5/8PIU-4)
  • Frequency Range LNB-Inputs 950-2300 MHz
  • Terr. Input 5-862 MHz (passive) 40-862 MHz (active)
  • Outputs 5-2300 MHz (passive) 40-2300 MHz (active)
  • Control 10-14.5 / 15.5-20 V + 0/22 kHz
  • Insertion Loss 950-2300 MHz 4 dB avg.
  • 40-862 MHz (active) 3 dB
  • 5-862 MHz (passive) 20 dB
  • SAT Inputs Isolation 20 dB min.
  • Maximum Input Level* Sat. 100 dBµV
  • Terr.110 dBµV (passive) 93 dBµV (active)
  • Power Consumption From each receiver 40 mA (18 V)
  • From internal power supply 4 W (TERR passive) 6 W (TERR active)
  • Dimensions (w,d,h [cm]) 27.0 x 15.2 x 8.7
  • Temperature range -30 °C – +70 °C

Mai multe detalii aici.

Greutate 1.5 kg
Dimensiuni 34 × 9 × 21 cm
Producator

EMP-Centauri s.r.o.
