Comutator EMP-Centauri 5 la 4

Disponibilitate:

1 în stoc

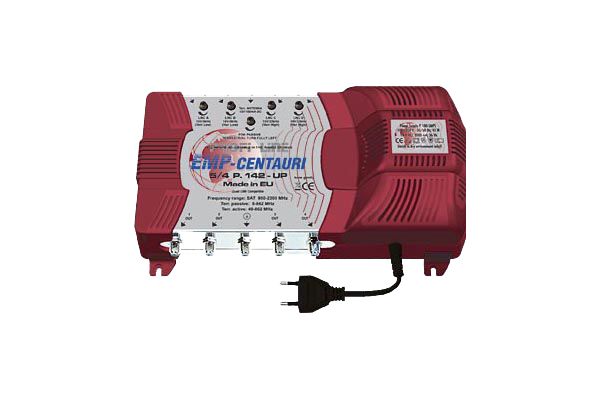

Sistem de distributie independent cu 5 intrari / 4 iesiri. Echipamentul este compatibil cu LNB Quad.
Specifications of P.142-UP (MS5/4PIU-4)
Frequency Range LNB-Inputs 950-2300 MHz
Terr. Input 5-862 MHz (passive) 40-862 MHz (active)
Outputs 5-2300 MHz (passive) 40-2300 MHz (active)
Control 10-14.5 / 15.5-20 V + 0/22 kHz
Insertion Loss 950-2300 MHz 3 dB avg.
40-862 MHz (active) 2 dB
5-862 MHz (passive) 19 dB
SAT Inputs Isolation 20 dB min.
Maximum Input Level* Sat. 100 dBµV
Terr. 110 dBµV (passive) 93 dBµV (active)
Power Consumption From each receiver 40 mA (18 V)
From internal power supply 4 W (TERR passive) 6 W (TERR active)
Dimensions (w,d,h [cm]) 26.5 x 15.2 x 8.7
Temperature range -30 °C – +70 °C

230.00 lei ~~268.00 lei~~

Pretul include timbrul verde: 0.96 lei

1 în stoc

Sistem de distributie independent cu 5 intrari / 4 iesiri. Echipamentul este compatibil cu LNB Quad.
Specifications of P.142-UP (MS5/4PIU-4)
Frequency Range LNB-Inputs 950-2300 MHz
Terr. Input 5-862 MHz (passive) 40-862 MHz (active)
Outputs 5-2300 MHz (passive) 40-2300 MHz (active)
Control 10-14.5 / 15.5-20 V + 0/22 kHz
Insertion Loss 950-2300 MHz 3 dB avg.
40-862 MHz (active) 2 dB
5-862 MHz (passive) 19 dB
SAT Inputs Isolation 20 dB min.
Maximum Input Level* Sat. 100 dBµV
Terr. 110 dBµV (passive) 93 dBµV (active)
Power Consumption From each receiver 40 mA (18 V)
From internal power supply 4 W (TERR passive) 6 W (TERR active)
Dimensions (w,d,h [cm]) 26.5 x 15.2 x 8.7
Temperature range -30 °C – +70 °C

Mai multe detalii aici.
