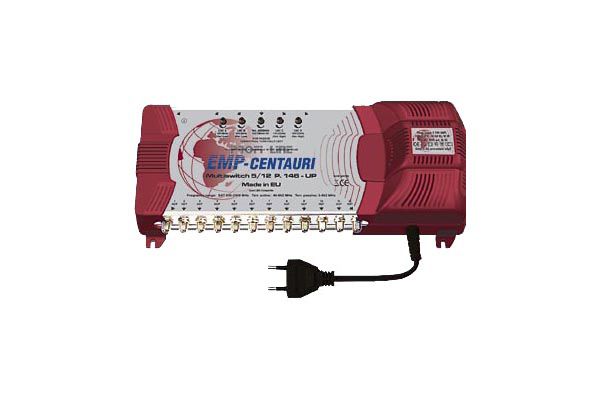

- P146-UP (MS5/12PIU-5)
- Sistem de distributie independent cu 5 intrari / 12 iesiri. Furnizeaza 22 KHz pentru benzile superioare, in vederea utilizarii si a LNc-urilor QUAD.
- Specifications of P.146-UP (MS5/12PIU-5)
- Frequency Range LNB-Inputs 950-2300 MHz
- Terr. Input 5-862 MHz (passive) 40-862 MHz (active)
- Outputs 5-2300 MHz (passive) 40-2300 MHz (active)
- Control 10-14.5 / 15.5-20 V + 0/22 kHz
- Insertion Loss 950-2300 MHz 0 dB avg.
- 40-862 MHz (active) 7 dB gain
- 5-862 MHz (passive) 21 dB loss
- SAT Inputs Isolation 20 dB min.
- Maximum Input Level Sat. 90 dBµV
- Terr. 110 dBµV (passive) 85 dBµV (active)
- Power Consumption From each receiver 45 mA (18 V)
- From internal power supply 5 W (TERR passive) 9 W (TERR active)
- Dimensions (w,d,h [cm]) 34.5 x 15.2 x 8.7
- Temperature range -30 °C – +70 °C
