The WISI TANGRAM video platform is a high-density digital TV headend for contribution of digital TV via IP networks and end-to-end IPTV solutions such as video-on-demand, connected TV and OTT (Over The Top) or Web TV. The platform is highly customizable and offers advanced DVB stream processing in a small footprint 1 RU chassis concept. The TANGRAM chassis can be equipped with 6 + 1 modules. The six rear loaded modules have different functionalities, and can perform all necessary signal processing functions. Highlights: Small footprint in 1RU chassis / Hot swappable fan tray / Fully redundant concept (1+1, n+1) / Optional scrambling and multiplexing function / Redundant power supplies ensure operational capability / Each module can be equipped in every slot. WISI has configured TV networks in twelve football stadiums and the International Broadcast Center.

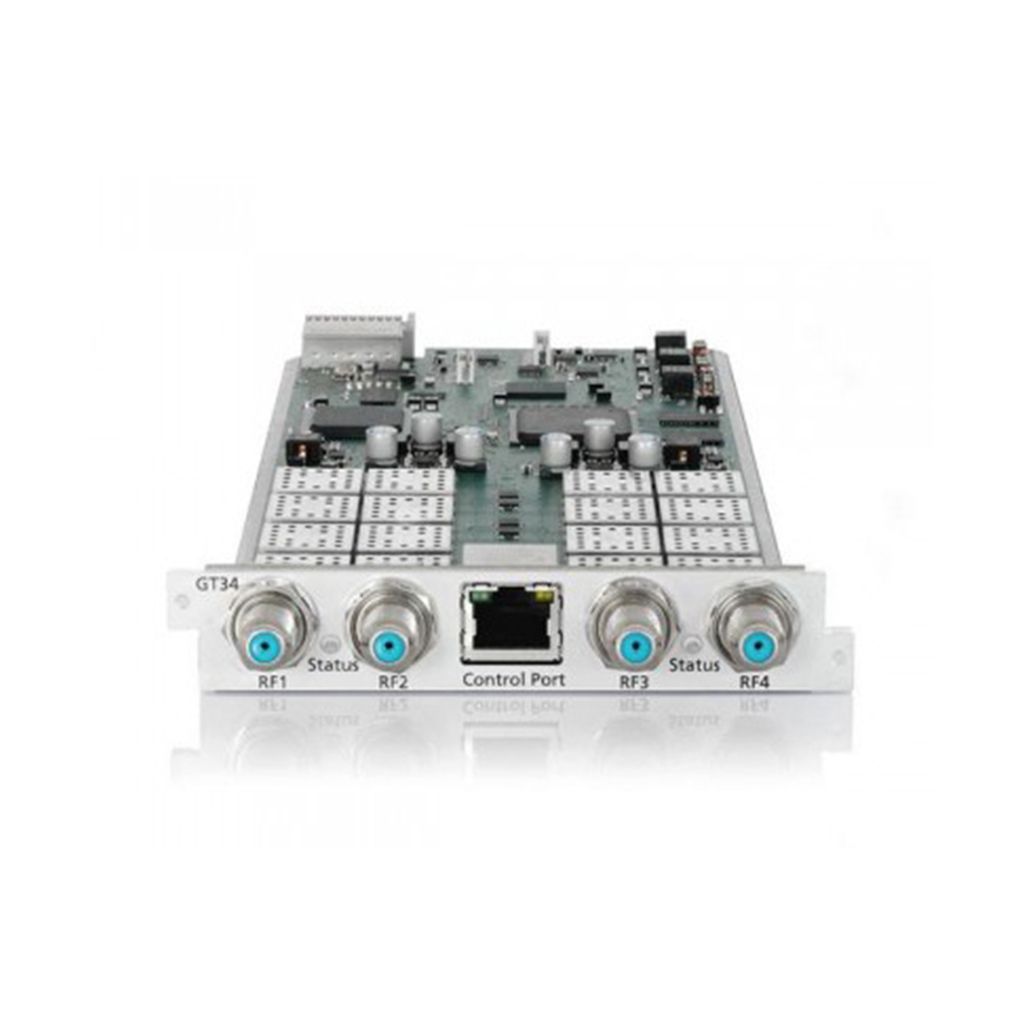

- Modul Tangram de receptie satelit
- DVB-S/S2 – IP gateway for IPTV, CATV and multiscreen solutions
- Reception of up to 16x DVB-S/S2 satellite transponders via 4 RF-inputs
- For saving cabling costs integrated SAT multiswitch
- Professional DVB transport stream processing
- SPTS and MPTS streaming (CBR or VBR)
- UDP and RTP MPEG transport stream over IP protocol
- High-density reception of 96 transponders in 1 R
